| Brand | Anviz |
| Activation sensor | Key-press |
| Keypad | Tactile |
| Capacity | Up to 10.000 users or cards |
| Records | Up to 200.000 |
| Identification modes | Password (4 - 6 digits) or card |
| Proximity card | EM RFID (125KHz) & MF (13,56MHz) |
| PC communication | TCP/IP, WiFI, Bluetooth, RS485, miniUSB |
| Inputs | Door sensor, push button, alarm output |
| Degree of protection | IP65, IK10 |
| Outputs | Wiegand, Output relay NO/NC |
| Power | DC 12 V |
| Dimensions | 22 (D) x 47 (W) x 124 (H) mm |
| Weight | 340 g |

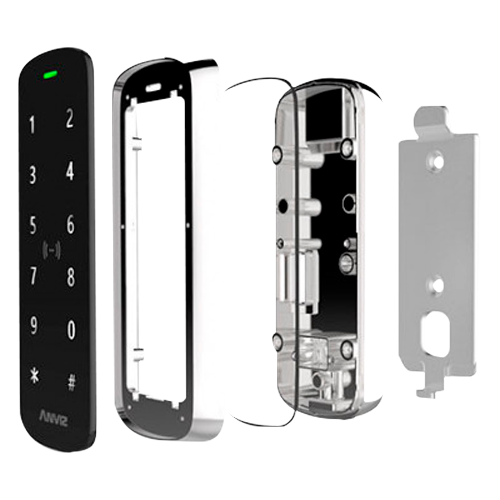

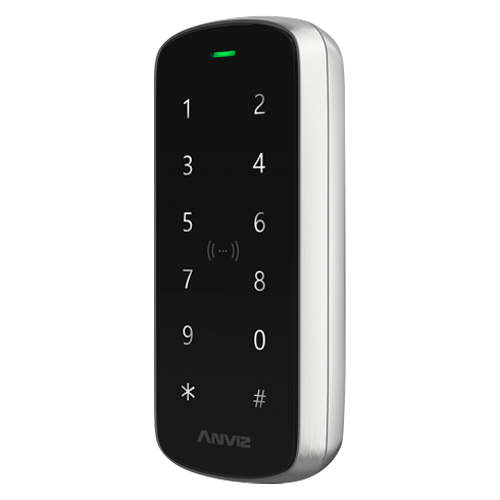

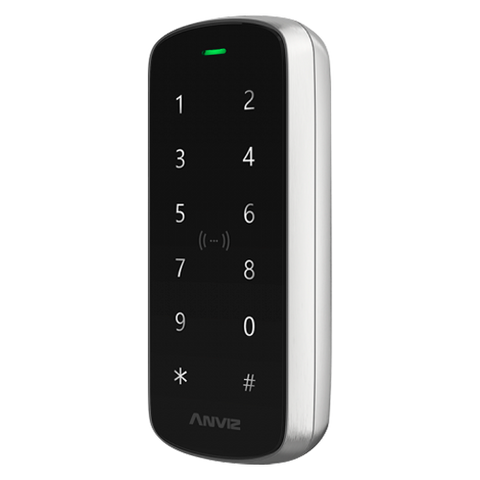

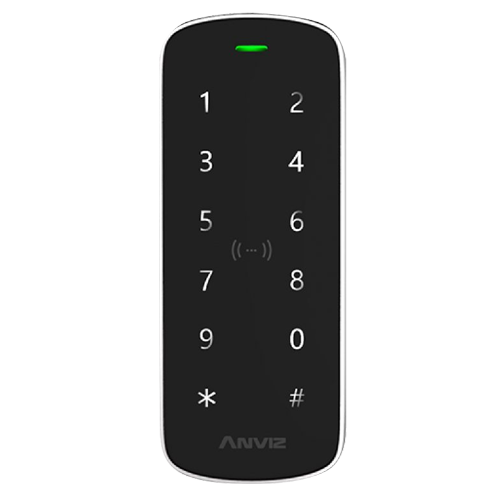

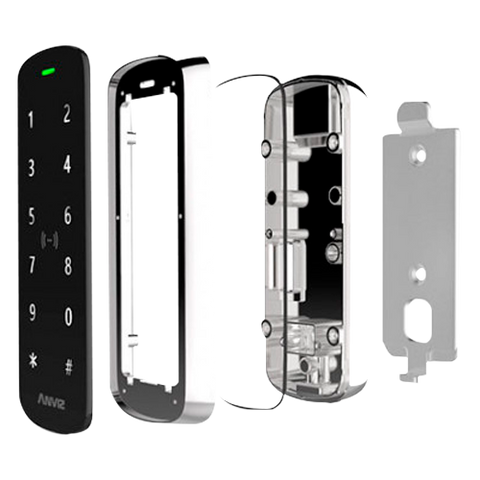

RFID Access Control. M3 Pro is a metal casing, IP65 water-proof design compact access control device, suitable for outdoor applications.It supports 13.56MHZ Mifare card and 125KHZ EM card dual frequency module. The touch backlit keypad, support TCP/IP and RS485 communication convenient for customers to use. The M3 Pro has both built-in relay for direct lock and standard Wiegand output, which can be work as standalone access controller and RFID reader.
Features 🚀
- Dual access autonomous reader
- Identification by keypad, EM and MF card and mobile APP
- Capacity 10.000 cards/users, 200.000 registers
- TCP/IP communication, WiFi, RS485, miniUSB and Wiegand
- Integrated controller (Door sensor, Push-button & Relay)
- Suitable for exterior IP65, anti-vandal IK10
- ANVIZ CrossChex complete management software included
- User Management and Openings from CrossChex App available for iOS and Android with Bluetooth.
Specifications 🤓
Package includes 📦
- Anviz standalone reader
- 2 plugs and 2 screws for mounting
- USB cables
- 2 RFID Cards
- User instructions
