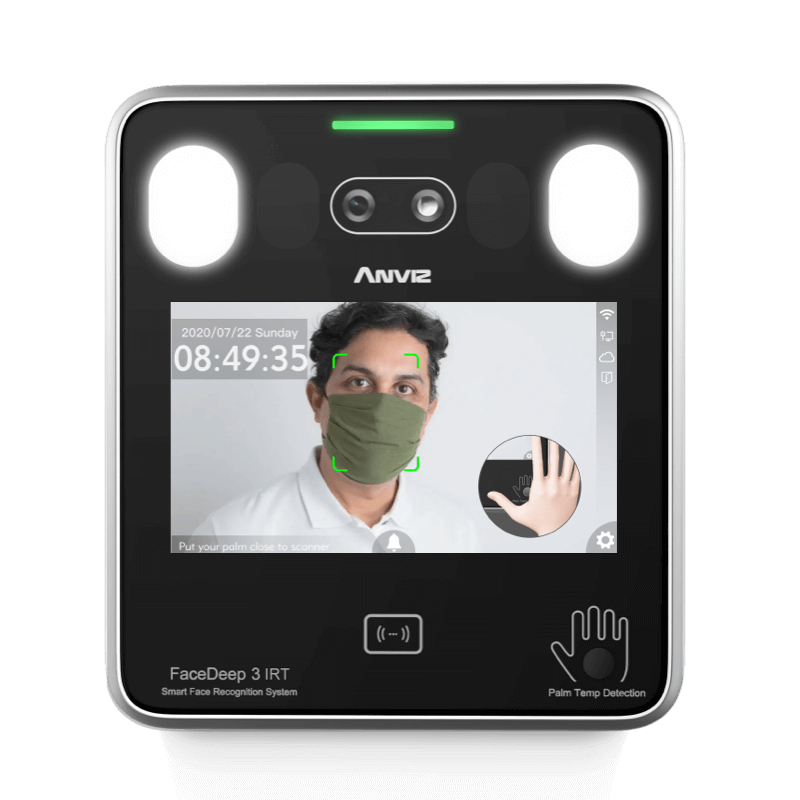

Anviz FaceDeep 3 IRT Access Control and Time & Attendance with Body Temperature Detection
Anviz FaceDeep 3 IRT Access Control and Time & Attendance with Body Temperature Detection
Anviz FaceDeep 3 IRT Access Control and Time & Attendance with Body Temperature Detection
Anviz FaceDeep 3 IRT Access Control and Time & Attendance with Body Temperature Detection

Anviz FaceDeep 3 IRT Access Control and Time & Attendance with Body Temperature Detection

  • SALE
  • £599.00
Tax included. Shipping calculated at checkout.

FaceDeep 3 IRT is powerful facial and RFID recognition system for Time and Attendance and Access Control with body temperature detection.

FaceDeep 3 IRT series are the new AI-based face recognition terminal equipped with a dual-core based Linux based CPU and the latest BioNANO® deep learning algorithm. It supports up to 10,000 dynamic face database and rapidly recognize users within 2M(6.5 ft) in less than 0.3 seconds and customizes alerts and a variety of reporting for no-mask wearing.

BEST IN CLASS OF POWERED BY AI SMART FACE RECOGNITION TERMINAL

Powered by Independent AI Engine and BioNANO Deep Learning Algorithm
- GOPS NPU 600
- Dual-Core 1.0GHz
- Face Recognition Speed <0.3 S

System Operation Scenario

Facial recognition, body temperature detection and mask-wearing checked by the FaceDeep 3 IRT all at once. After the scan, the information redirects to the administration via both CrossChex App and CrossChex Web software.

Wearing mask and normal temperature

Face Deep 3 IRT with mask no temp

Not wearing mask and normal temperature

Face Deep3 without mask

Wearing mask and high temperature detected

Face Deep 3 IRT with mask with temp

Secure Identification in Various Environment and Conditions

With the verification of over one million faces around the world, FaceDeep 3 IRT has become one of the most accurate face recognition terminals suitable for various environment and conditions.

Anviz Faces

Ergonomic Design for Convenience

Flexible installation to support the extended height range [ 120 - 190 cm（47.24 - 74.80”)] for face recognition

 Face Deep 3 Installation height


Features 🚀

  • Identification Modes: Face, card, password multiple ways to choose, convenient, flexible and safe to use

  • Attendance Status: User-defined function keys to switch attendance state, meeting multiple identification needs

  • Card: Standard EM, Optional Mifare in PRO version

  • Open the Door Remotely: Remote opening through network and software management

  • Temperature Detection: 23℃~46℃ (73℉~114℉)

  • Security: Security incident monitoring and alarm

  • Access Control Interface: Support Relay Output, Wiegand26/34 Input and output, magnetic, etc.

  • Infrared Sensing: Infrared sensor activation

  • U Disk Download: Support U disk, user information record backup and firmware upgrade

  • Multi-language: Support Global Multilingual Display


Specifications 🤓

Brand ANVIZ
Operating system Linux
Screen
5″ TFT Touch Screen Resolution 720*1280
Face detection Dual camera
Identification time < 300ms
Capacity Up to 6.000 faces and / or RFID cards
Records Up to 100.000
Time & Attendance Modes Up to 8 customizable modes
Palm Temperature Detection Distance 10~20mm( 0.39~0.79” )
Temperature Range 23°C~46°C ( 73°F~114°F )
Temperature Accuracy ±0.3°C( 0.54°F )
Verification distance 0.5 ~ 1.5m ( 19.69 ~ 59.06” )
Identification modes Facial (F), Card (C), Password (P)
Proximity card EM RFID (125KHz),  13.56 MHz Mifare (PRO version - on request)
PC communication
RS485, TCP/IP, RS232, Wi-Fi, (WebServer available), Bluetooth in PRO version (on request), 4G in custom version (on request)
Inputs Door sensor and Push button
Outputs Wiegand / Anviz, Relay output NO / NC, Doorbell
Free software ANVIZ CrossChex
Power supply DC 12V 2A
Temp. operation -5℃~60℃ 23℉~160℉
Dimensions 14.6*16.5*3.4 cm 5.75*6.50*1.34”


System Configuration Diagram

Flexible communication for WiFi or Lan. Convenient management for Web-server and PC software.

Face Deep3 IRT setup

Cloud deployment (Crosschex Cloud)

Face Deep3 IRT cloud



Anviz FaceDeep 3 IRT Flyer

Anviz FaceDeep 3 IRT QuickGuide

Anviz GDPR Compliant Statement


Back to ANVIZ Access Control
