UrFog Ajax Ready 800 m3

SALE
Regular price £1,550.00

Tax included. Shipping calculated at checkout.

Quantity

UrFog is the most innovative and powerful anti-intrusion system on the market.
A team of professionals and engineers with more than 20 years of experience guarantee continuous development of new products designed to provide optimal protection for any environment.

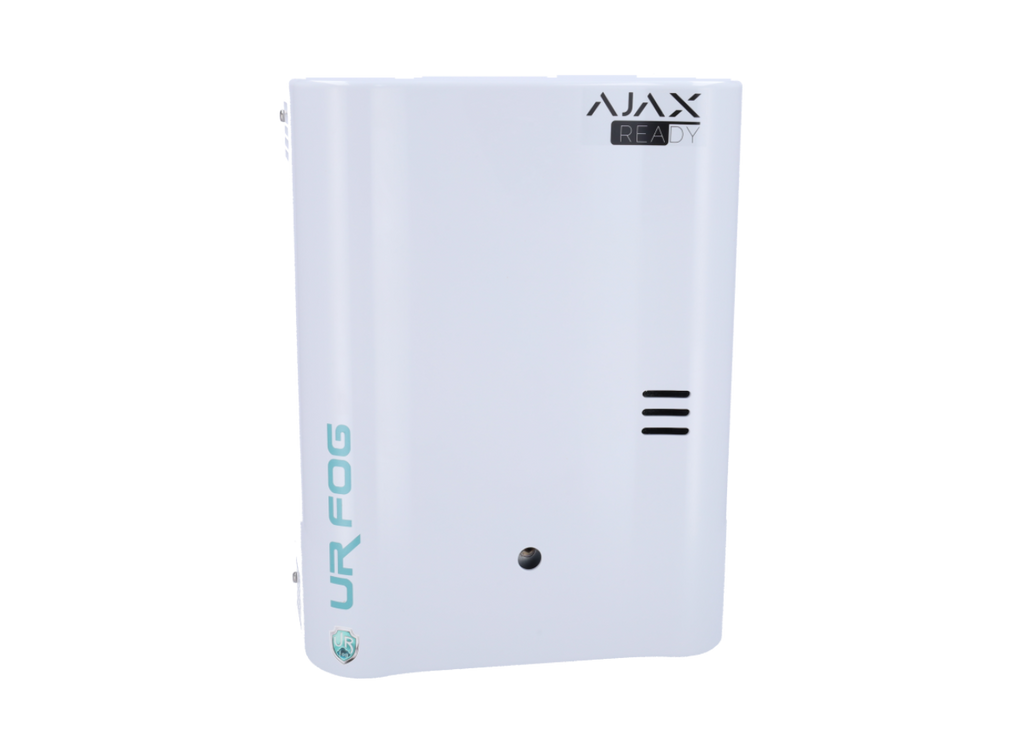

UrFog Ajax Ready FPU03ESM800A covers up to 800 m³ in 69 seconds.

3 activation modes of the fogging system 💨

1 - Motion PIR sensor, Door / Window sensor 🪟

By motion detection and/or door/window opening detection - the fog emission is automatically activated.

Motion PIR Sensor, Door / Window sensor

2 - MotionCam - photo verification 📸

The MotionCam PIR takes a series of animated pictures and sends them for an accurate assessment of the situation; in case of actual need, not a false alarm, the fog emission can be activated remotely.

MotionCam - photo verification

3 - Anti-panic or anti-robbery 🚨

It is possible to activate manually the Fogging System, thank to the key fob with SpaceControl anti-panic button, the DoubleButton emergency button and the Button anti-panic button, when the system is not armed.

Features 🚀

URFOG
Ajax Ready Fog Generator
Generates 800 m3 of fog with zero visibility in 60"

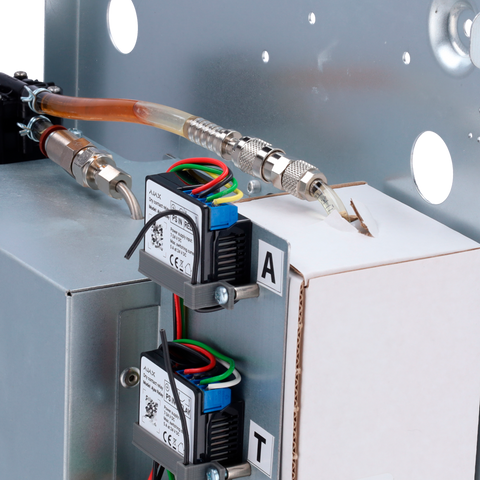

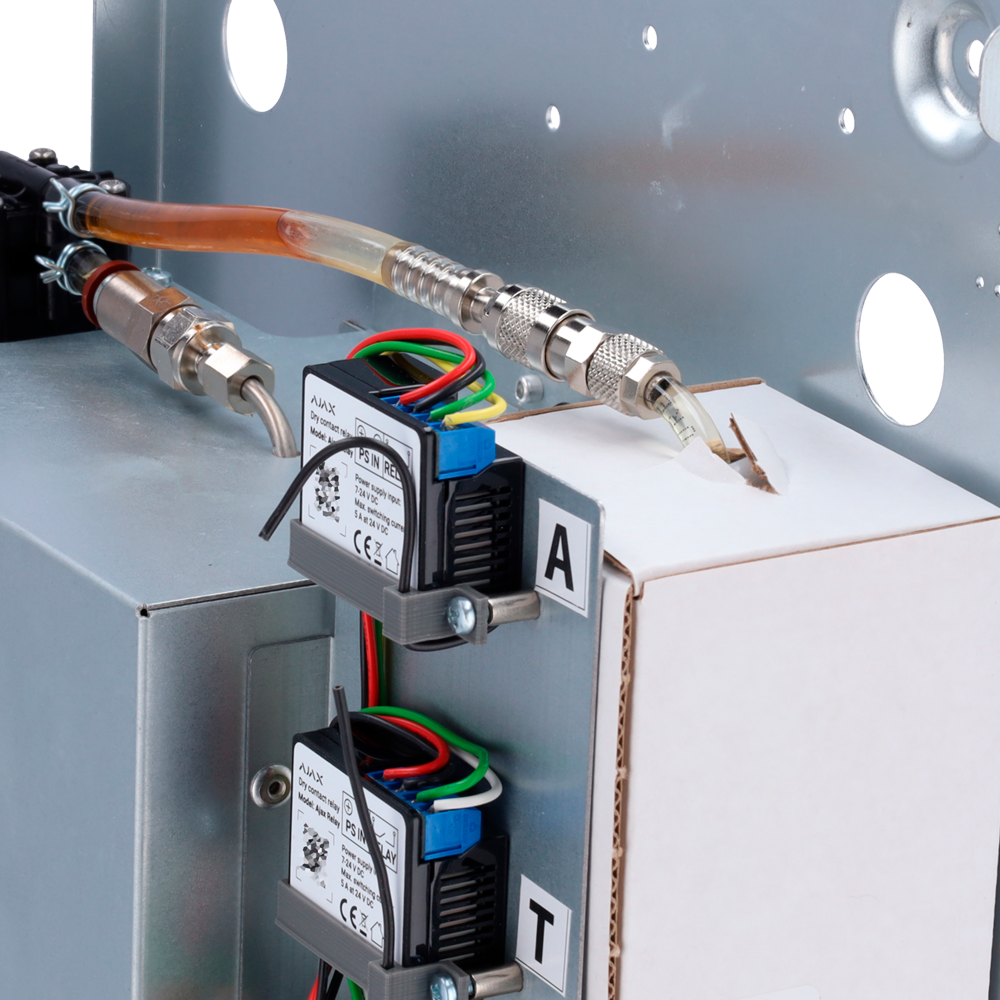

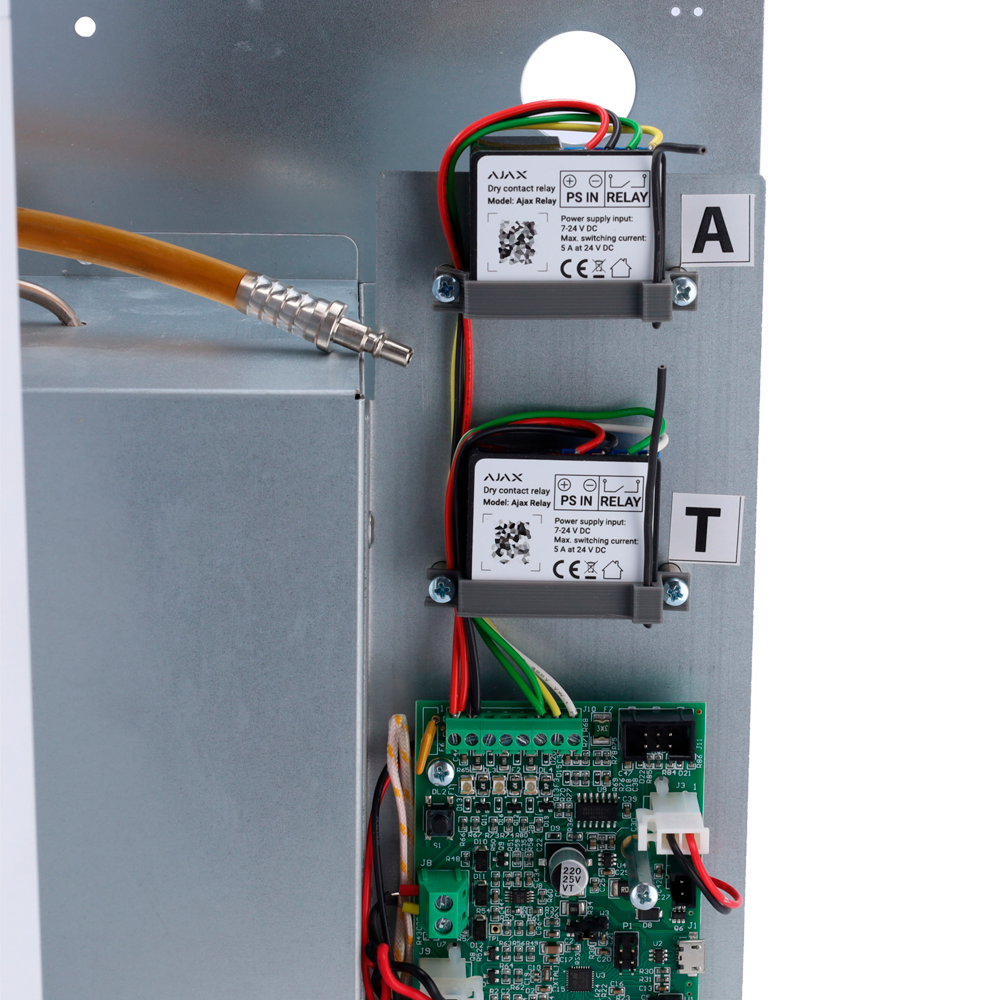

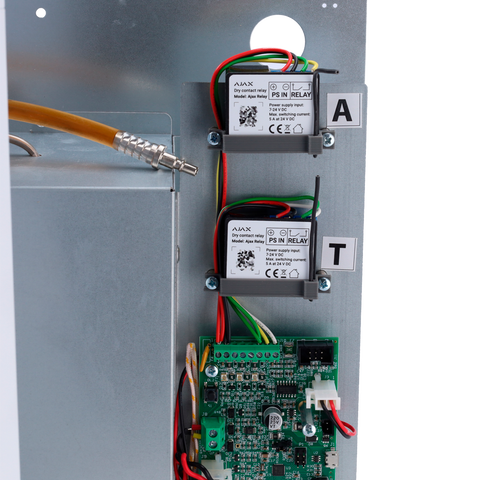

2 Ajax Relays (For arming and for executing) integrated in the machine
Signal Buzzer
LED visual signaling
Output 12VDC 300mA for external peripherals
Battery Back-up possibility (12VDC 2.0Ah)
Shooting time adjustable up to 69 s
Total launching time 2.5 min
Total launching volume 1700 m3
Green Power technology for low consumption
White colour
390 (H) x 300 (W) x 130 (D) mm

Specifications 🤓

Ajax Relays	2 units already installed (for arming and executing)
Fog coverage	2400 m3 (visibility 1 meter) 800 m3 (zero visibility)
Fog Dispensing Time	Configurable up to 69 seconds
Total Dispensing Time	2.5 minutes
Total Quantity Dispensed	5100 m3 (visibility 1 meter) 1700 m3 (zero visibility)
Tank Capacity	1 L
Refill method	Easy-to-install single-use bag
Heating Time (100%)	120 minutes
Reaction Time	200 ms
Inputs	1 Arm Control / 1 Shot Control
Outputs	Failure, Liquid and 12V@0.3A
Power	AC 220 V
Nominal power consumed when armed	280 W / 48W
Backup Battery	12V/2Ah (not included) / 60' for backup operation without primary power supply
Dimensions	390 (H) x 300 (W) x 130 (D) mm
Weight	9.5 Kg with full tank
Installation type	Vertical or horizontal

Package includes 📦
