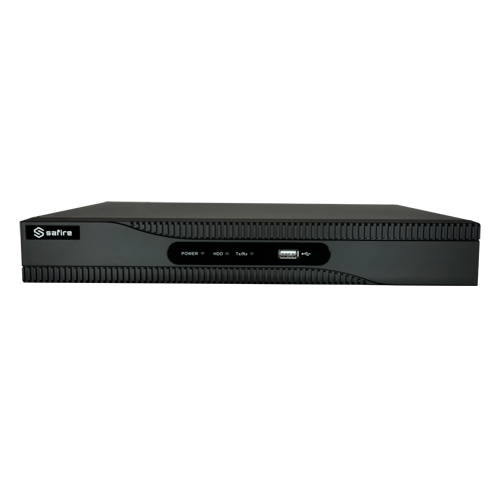

The Safire SF-NVR6104-4KE-4P is top quality POE network video recorder offers the benefits of managing bandwidth and storage with the latest H.265+ compression technology. NVR has 4 POE ports to connect up to 4 IP cameras. The all-in-one NVRs have powerful capabilities, supporting up to 8 MP resolution for recording. Ultra-high definition output up to 4K is now supported on all NVR series. Supports 1 SATA hard drive 3.5".
Features 🚀
- Third-party network cameras supported
- Up to 8 Megapixels resolution recording
- 4 ports RJ45 10/100/1000 PoE IEEE802.3af/at
- 40 Mbps bandwidth supported
- Maximum resolution 4K
- Decoding capacity: 1 CH 4K / 4 CH 1080p
- Compression H.265+/H.265/H.264+/H.264
- Outputs 4K HDMI & VGA
- IP Dual Stream Access
- Mouse
- Space for 1 HDD
- Audio
- WEB, CMS and Smartphone interface
- ONVIF Compatible
Specifications 🤓
| Brand | Safire |
| Inputs for IP cameras | LAN port up to 4 PoE channels |
| Power over Ethernet | 4 (Max. 50W) |
| IP compatible cameras | SAFIRE (native protocol), ONVIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Display resolution | 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Total bandwidth | 40 Mbps downstream / 80 Mbps upstream |
| Main Stream recording | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | No |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Internal memory | 1 SATA HDD 3.5" of up to 6 TB (not included) |
| Communication | 1 x USB 2.0 (front) / 1 x USB 2.0 / 1 x RJ45 (Ethernet) |
| Remote access | Web browser, Safire Control Center Smartphone App and PC Software |
| Power | DC 48V / 1.35A |
| Dimensions / Weight | 48 (H) x 320 (W) x 240 (D) mm / 0.9 Kg |
Package includes 📦
- Recorder SAFIRE NVR
- Mouse
- Remote control
- Ethernet Cable
- Power supply cable
- CD with manual and software
